Fabrication

Laser Cutting

4 Multi-Axis 2D Lasers - 4000w+

Welding

MIG - TIG - Spot - Robotic

CNC Punching

Precision Metal Stamping

Forming

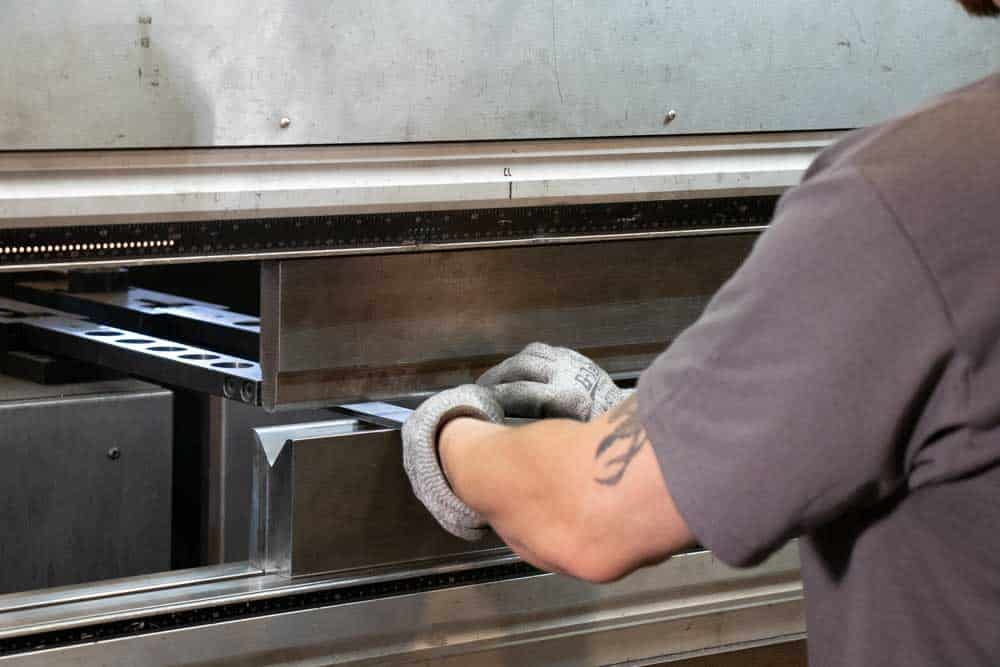

Accurpress Forming

New Tech Metals specializes in many advanced fabrication techniques, including:

  • Laser Cutting
  • Punching
  • Forming

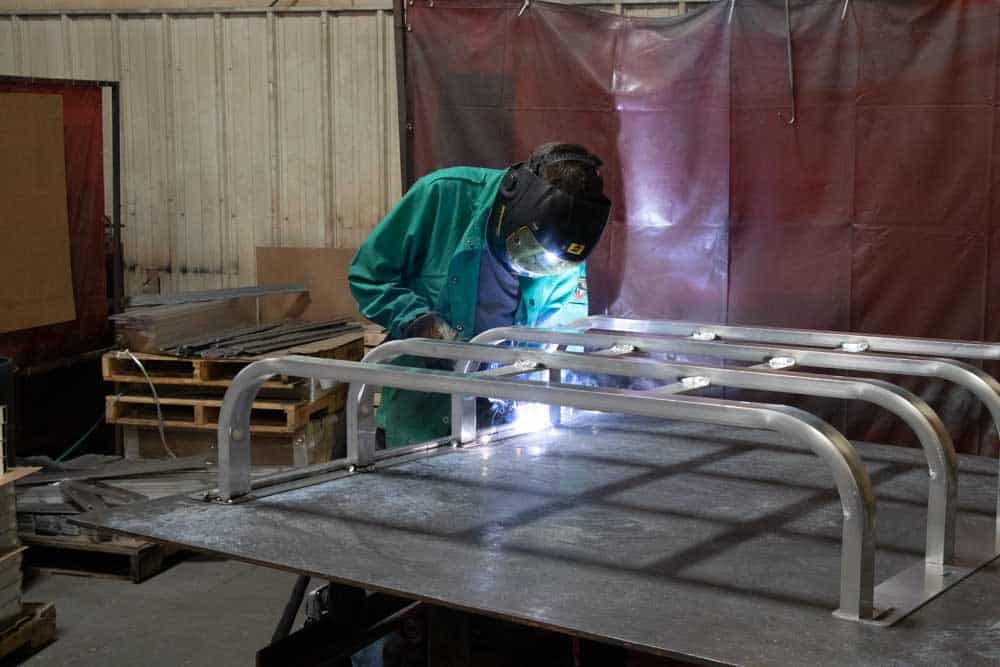

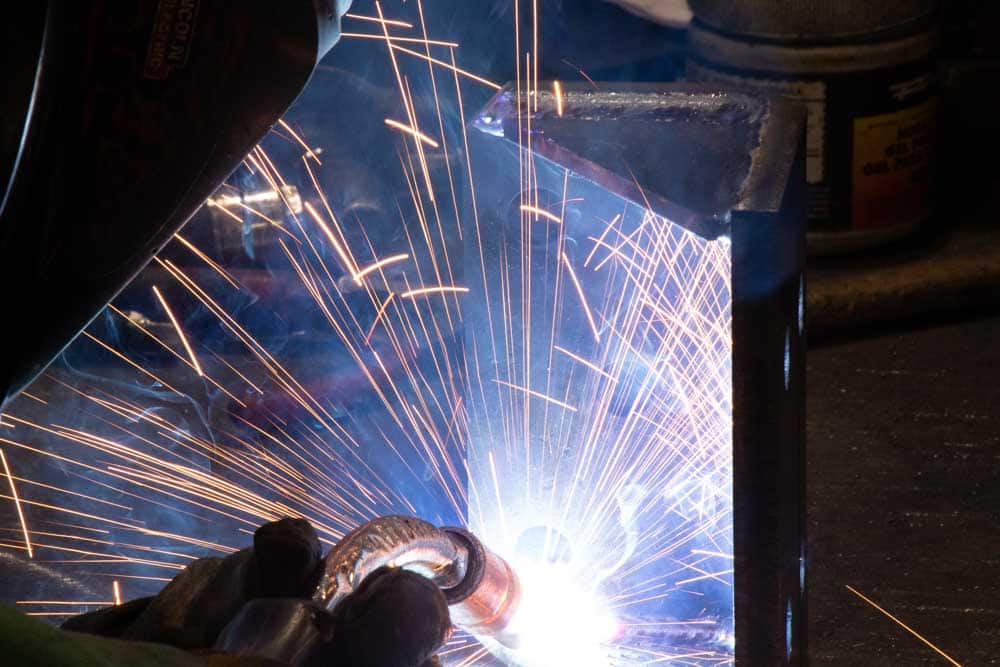

  • Welding (MIG & TIG)

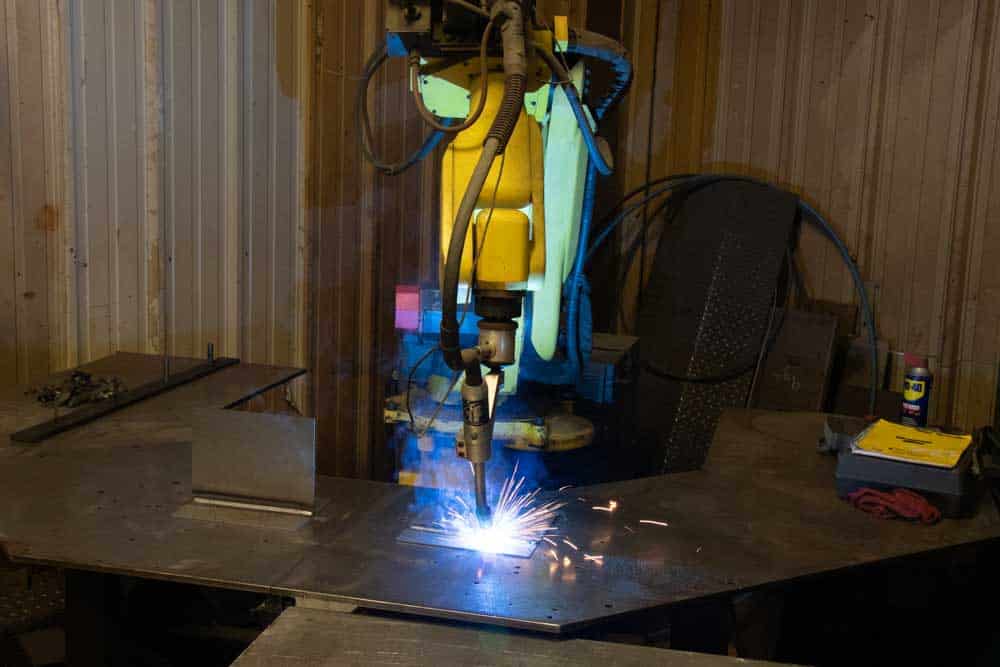

  • Robotic Welding
  • Spot Welding

Laser Cutting

Capabilities & Specifications

CNC Punching

Capabilities & Specifications

  • Laser Type: CO2 (Gaseous)
  • Laser Configuration: Flying Optics
  • Cutting Axis: 2-Axis
  • Intended Cutting Material (Metal):
    • Aluminum
    • Ferrous Metals
    • Heavy Plate
    • Inconel
    • Monel
    • Non Ferrous Metals
    • Pipe
    • Stainless Steel
    • Steel
    • Thin Metal
  • Cutting Thickness:
    • Up to 1.000 mild steel
    • Up to .500 stainless steel
    • Up to .250 galvanized
    • Up to .375 aluminum
  • Cutting Width: 2D: Up to 60 in
  • Cutting Length: 2D: Up to 120 in
  • Cutting Diameter: 2D: Up to 60 in
  • Kerf: Min: 10 mils
  • Maximum Output Power: 2D: 4000 W 2D: 4500 W
  • Accuracy: +/- .003 in
  • Stamping Production Methods:

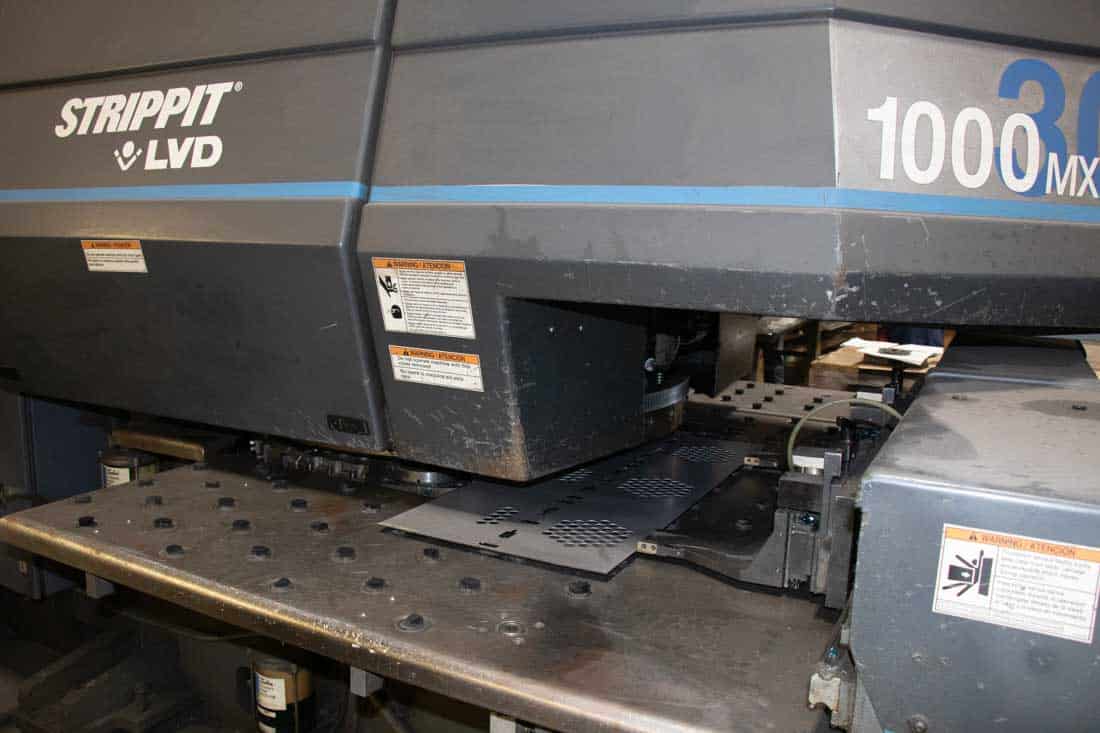

    • Strippit Turret
    • Punch Press
  • Tooling: Progressive
  • Stamping Features: Pre-Painted/Coated
  • Press Rating: 30 T
  • Materials:
    • Steel
    • Stainless
    • Aluminum
    • Brass
    • Copper
  • Part Thickness: 11 to 22 gauge
  • Part Length: Up to 40 in
  • Part Width: Up to 60 in
  • Tolerance: Customer Specified Standard Manufacturing Specifications
  • Inspection:
    • In Process
    • Incoming
    • Outgoing
  • Quality: ISO 9001-2015
  • Production Volume:
    • Prototypes
    • Short Run
    • High Production
